Homeowner/Landowner Chainsaws

135 Mark II

$619.00Rec. retail price incl. GST SKU: 967861846

Output shaft power1.6 kW
Cylinder displacement38 cm³

Product description

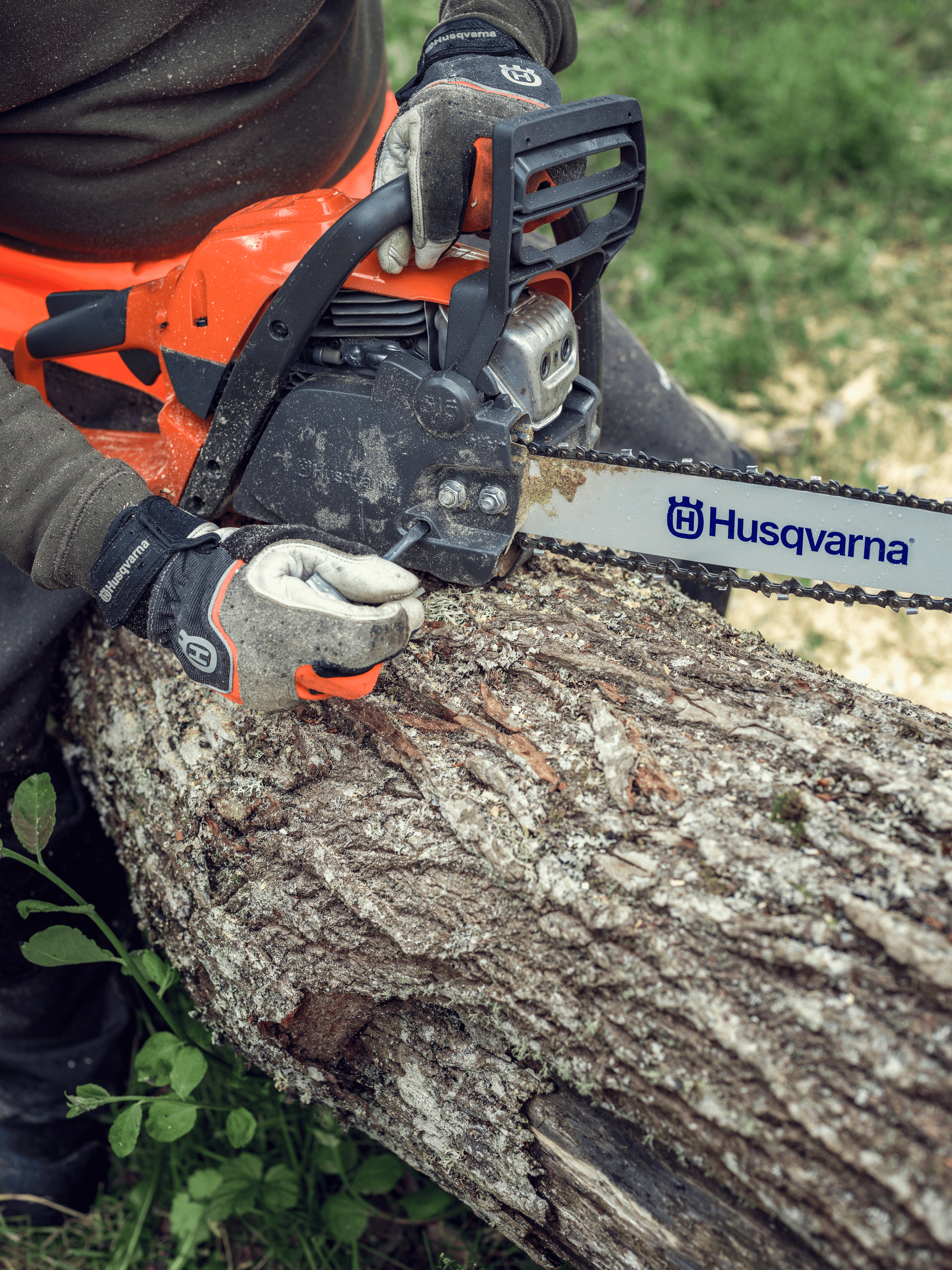

Robust, reliable and easy to use saw with ample cutting performance for homeowners. The perfect garden chainsaw for occasional cutting tasks such as cutting firewood and felling smaller trees. Starts quickly and handles easily, and thanks to the side mounted chain tensioner, tensioning the chain is both quick and easy.

Product Information

Features (8)

Extends the interval between filter cleaning, improving efficiency and increases engine life. image

Air Injection

Centrifugal air cleaning system expels larger dust and debris particles before they reach the air filter to help improve engine life

Smart Start® Technology

Specially-designed engine and starter for easy and fast starting with minimum effort

Side Chain Tensioning

Quickly and easily adjust the chain

Delivers lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations. image

Powerful and Efficient X-TORQ® Engine

Great power and efficiency

Effective inertia-activated chain brake image

Inertia chain brake

Reduces the likelihood of injury due to kickback

Quick Start with Air Purge

Air purge removes air from carburetor and fuel system for easy starting

Combined Choke/Stop Control

Provides easier starting and reduces the risk of engine flooding

Effectively minimising vibrations by isolating the engine from the handles reducing operator fatigue. image

Two mass principle

Dampeners between the engine and chassis significantly reduce vibrations so you can work more comfortably

Specifications	Art No: 967861846
Output shaft power	1.6 kW
Weight (excl. cutting equipment)	4.7 kg
Chain speed at max power	16.8 m/s
Cylinder displacement	38 cm³
Fuel tank volume	0.37 l
Sound pressure level at operators ear	102 dB(A)
Bar length	40 cm
Clutch engagement speed (±120)	4000 rpm
Electrode gap	0.55 mm
Equivalent vibration level (ahv, eq) front handle	3.72 m/s²
Equivalent vibration level (ahv, eq) rear handle	5.5 m/s²
Exhaust emissions (CO average) EU	278.5 g/kWh
Exhaust emissions (CO average) EPA	331 g/kWh
Exhaust emissions (HC average) EU	41.7 g/kWh
Exhaust emissions (HC average) CARB	40.85 g/kWh
Exhaust emissions (NOx average) EU	1.11 g/kWh
Exhaust emissions (NOx average) EPA	1.14 g/kWh
Fuel consumption	725 g/kWh
Idling speed	3000 rpm
Maximum power speed	9000 rpm
Oil tank volume	0.26 l
Product size height	29 cm
Product size length	41.7 cm
Product size width	23 cm
Recommended bar length, max	16 in
Recommended bar length, max	40 cm
Recommended bar length, min	14 in
Recommended bar length, min	35 cm
Sound power level, guaranteed (LWA)	116 dB(A)
Sound power level, measured	114.34 dB(A)
Torque, max.	1.84 Nm
Torque, max. at rpm	8000 rpm
